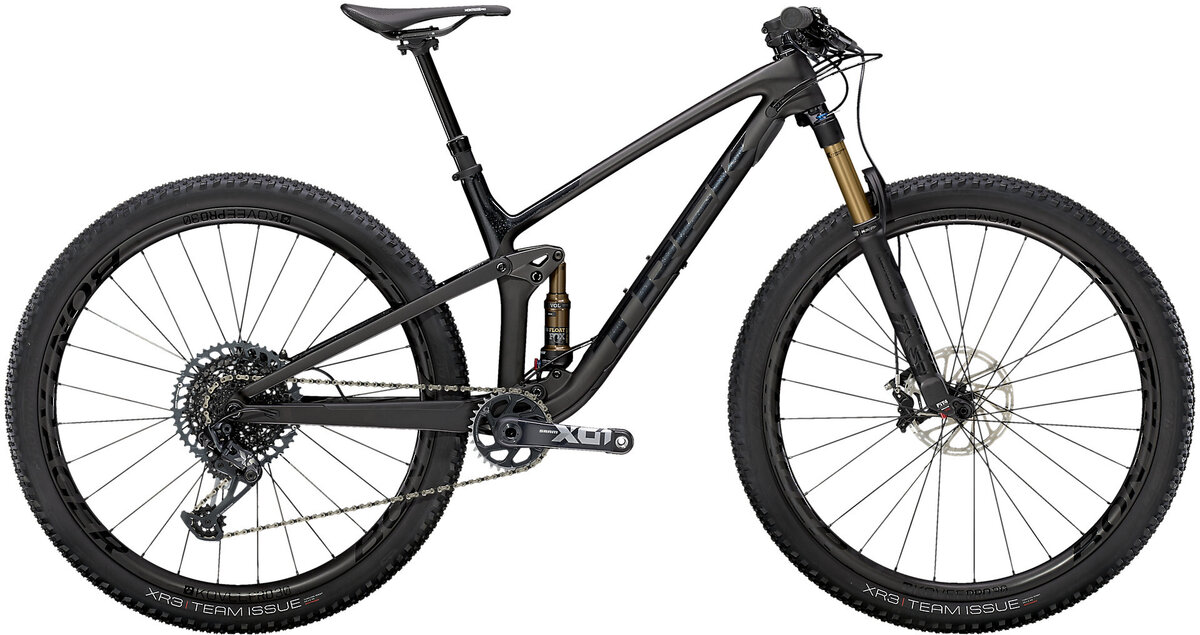

Trek Top Fuel 9.9 X01 - 2021
Details
Top Fuel 9.9 is a top-shelf full suspension mountain bike for riders who are serious about their fun. Its lightweight carbon frame is spec'd to the hilt with high-end suspension and high-performance parts. And all those fancy bits and bobs are really, really good at hitting the party line.
It's right for you if...
You're looking for the fastest way to a good time on the trail, and you're willing to crack open the piggy bank for top-shelf suspension and lots of lightweight carbon.
The tech you get
A light and stiff full carbon frame, 120mm Fox Factory 34 Step-Cast fork, 115mm of rear travel with a Fox Factory Float shock, and a new SRAM X01 Eagle drivetrain with an extra-low 52-tooth climbing gear. Plus, wide carbon Bontrager Kovee Pro 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, Bontrager DropLock dual remote suspension lockout, and lots of carbon everywhere.
The final word
With Top Fuel 9.9, you get a smooth, fast ride that doesn't shy away from rowdy trails. An OCLV Mountain Carbon frame, top-of-the-line suspension, and carbon components join forces for a nimble and insanely fun ride.
Why you'll love it
- It’s the ultimate down-country bike—light, capable, and trimmed with high-performance components
- Wider Kovee Pro 30 wheels provide better tire support so you can run lower pressure and get more traction
- Bontrager DropLock's shifter-style lever lets you easily lock out both front and rear shocks at the same time for added sprinting or climbing efficiently. Plus, it controls your dropper post too
- This short-travel bike has a killer suspension setup reminiscent of the all-mighty mullet—it's both efficient and ready to party
- Make it yours: it's fully customizable through Project One
Will my bike have a curved top tube?
Smaller frames (S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, 115mm travel |
|---|---|
| Fork | Fox Factory 34 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44mm offset, Kashima Coat, 15mm Kabolt axle, 120mm travel |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Rear Shock | Fox Factory Float, 2-position DPS damper, Kashima Coat, 190x45mm |
| Axles |
Front: 110 x 15 thru-axle Rear: 148 x 12mm thru-axle |
| Rims/Wheels | Bontrager Kovee Pro 30 carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver |
| Tires | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40'' |
| Crankset | SRAM X01 Eagle, DUB, Boost (52mm chainline) |
| Chainrings | 32T alloy ring |
| Bottom Bracket | SRAM DUB, 92mm, PressFit |
| Chain | SRAM XX1 Eagle, 12 speed |
| Rear Derailleur | SRAM X01 Eagle |
| Cassette/Rear Cogs | SRAM Eagle XG-1275, 10-52, 12 speed |
| Shifters | SRAM X01 Eagle, 12 speed |
| Handlebars | Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
| Stem | Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree |
| Brakes | SRAM G2 RSC 4-piston hydraulic disc w/SRAM CenterLine, 6-bolt, round-edge 180/160mm rotors |
| Pedals | Sold separately |
| Saddle | Bontrager Montrose Pro, 7x10mm carbon rails, 138mm width |
| Seat Post | Bontrager Line Elite Dropper, internal routing, 31.6mm, Small: 100mm travel; Medium – Medium/Large: 150mm travel; Large – X-Large: 170mm travel |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Red/Matte Carbon Smoke / Medium | 601842604731 | 1044131 | TOP37831387E |
| Matte Raw Carbon/Voodoo Trek Black / Medium | 601842370766 | 1044007 | TOP42459141K |
| Matte Raw Carbon/Voodoo Trek Black / Medium/Large | 601842370759 | 1044009 | TOP43622946K |
| Matte Raw Carbon/Voodoo Trek Black / Large | 601842370742 | 1044011 | TOP42532183K |
| Matte Raw Carbon/Voodoo Trek Black / X-Large | 601842370735 | 1044013 | TOP43535968K |
